ClipClop CS04 Mid-Drive Dual-Battery · Cargo electric bike
// CARGO · EXPORT-READY

CS04

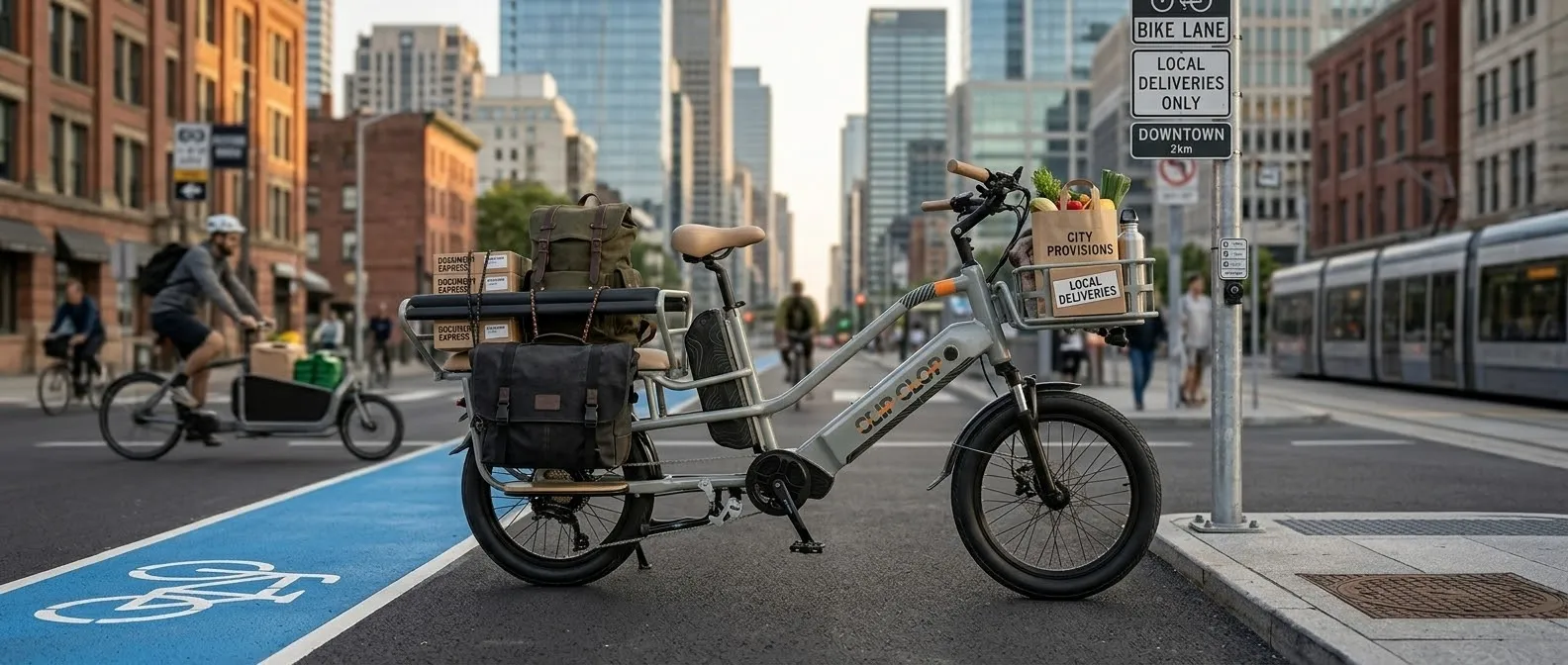

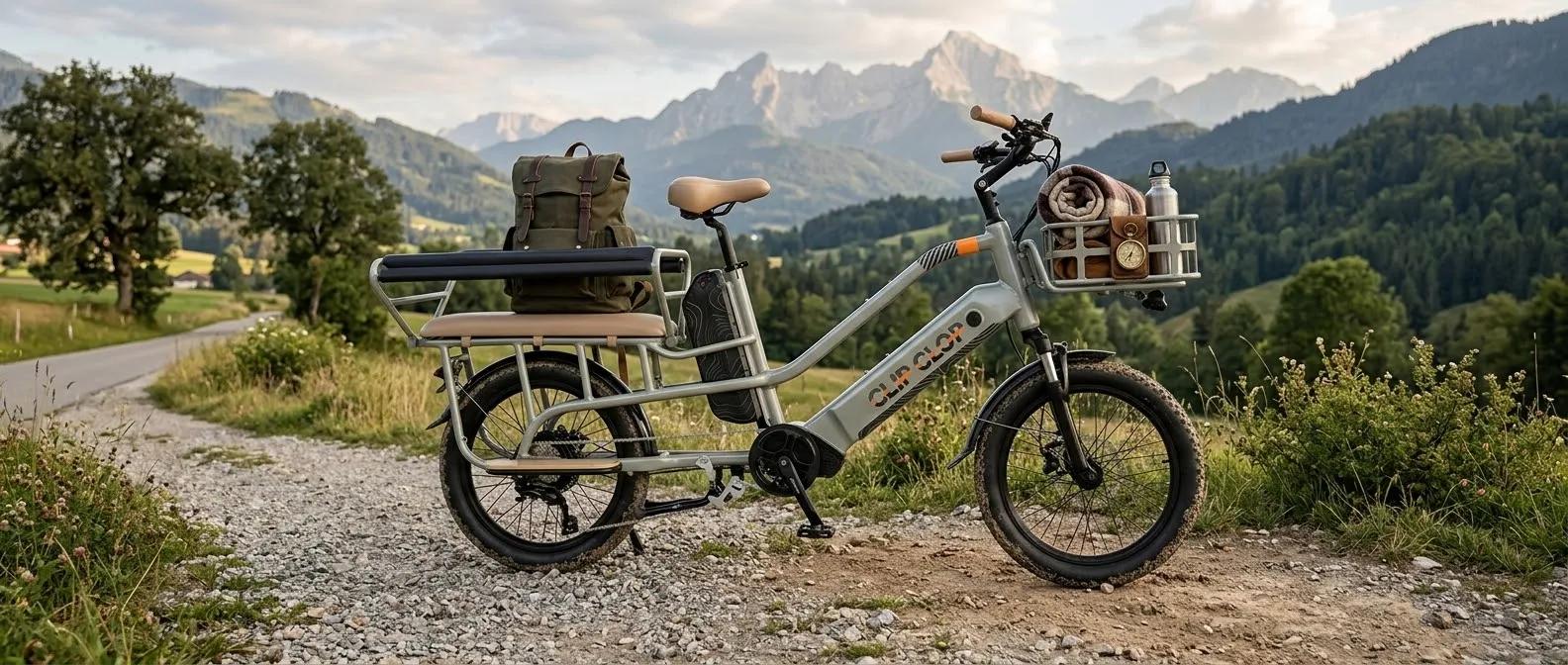

The CS04 is the only mid-drive in the line, with a dual 48V 10 Ah pack for cargo and last-mile work. The mid-drive layout gives smoother starts under load when the bike is carrying freight or a second rider.

// ORDER QUANTITY
ORDER REQUIREMENTMINIMUM 10 UNITS
LEAD TIMETo Be Negotiated
SKUCS04
CATEGORIESCargo E-Bikes
SHARE
// TECHNICAL SPECIFICATIONS

Product Specifications and Features

// PERFORMANCEPOWERTRAIN · RANGE · TOP SPEED
4 SPECS
MOTOR500W mid drive motor
BATTERY48V 10 Ah ×2 sets (dual)
RANGE100–120 km
SPEED25 km/h
// MECHANICALFRAME · CHASSIS · BRAKES · LOAD
5 SPECS
FRAME20" Aluminum Alloy 6061
WHEELS20×2.4
BRAKESMechanical disc brake
WEIGHT39 kg (GW 43 kg)
CARTON SIZE156×28×73 cm Loading: 63/20GP, 180/40HQ
// MANUFACTURING & QUALITY CONTROL

Proprietary Build Standards & Testing Benchmarks

6061-T6 & ROBOTIC WELDING

Robotic Laser Welding & Stress Relief

Custom 6061-T6 aluminum extrusions with automated robotic laser welding for uniform fish-scale seams. T4/T6 heat-treated to relieve internal stresses, tested for 100,000+ vertical fatigue cycles under ISO 4210 / EN 15194.

SURFACE FINISHING

Automated Electrostatic Powder Coating

Multi-stage degreasing, oxide stripping, and anti-corrosion passivation. Automated powder coating line with high-temperature curing exceeds 96-hour neutral salt spray (NSS) testing to withstand humid and coastal operating environments.

ELECTRICAL & BMS

100% Dyno Bench & Safety QC

Every production unit undergoes 100% loaded dyno testing before packing: motor torque curve, hydraulic brake deceleration response, IPX6 waterproof harness sealing, and battery cell balancing verification (ΔV < 15mV).

LOGISTICS & PACKING

Container-Optimized B2B Packing (40HC)

Heavy-duty 5-layer corrugated export cartons with custom high-density molded foam inserts. Engineered to maximize 40HC container cube utilization (up to 320+ units for folders), significantly lowering per-unit landed ocean freight.

// B2B AFTER-SALES SUPPORT

Warranty & Spare Parts SLA

1%–2% FREE BUFFER

Wear & Tear Spare Parts

For full-container wholesale orders (20GP / 40HQ), ClipClop bundles 1% to 2% complementary wear parts (brake pads, inner tubes, spokes, cables) inside the shipment.

12–24 MONTH WARRANTY

Core Powertrain SLA

Battery packs, drive motors, and smart controllers carry a 12 to 24-month direct manufacturer warranty with traceable serial numbers and factory inspection logs.

AIR EXPRESS DISPATCH

Fast RMA Replacement

Verified defective electrical parts under warranty are dispatched via international air express (DHL / FedEx / SF International) to minimize dealership showroom downtime.

<24H ENGINEERING DESK

Technical RMA Support

Direct bilingual engineering triage via WhatsApp and video diagnostics. RMA verification and warranty authorization initiated within 24 business hours.
