clipclop-m26-ebike
// E-MTB · EXPORT-READY

M26

The M26 is a 26-inch catalog commuter with a 20 Ah Samsung pack, hydraulic brakes, and 160 kg payload. It is a fleet-friendly step up from the M20 family for rental and bike-share operators.

// ORDER QUANTITY
ORDER REQUIREMENTMINIMUM 10 UNITS
LEAD TIMETo Be Negotiated
SKUM26
CATEGORIESElectric Mountain Bikes
SHARE
// TECHNICAL SPECIFICATIONS

Product Specifications and Features

// PERFORMANCEPOWERTRAIN · RANGE · TOP SPEED
4 SPECS
MOTOR48V 750W brushless geared motor
BATTERY48V 20Ah Samsung Lithium battery
RANGE40–65 km
SPEED35 km/h
// MECHANICALFRAME · CHASSIS · BRAKES · LOAD
5 SPECS
FRAME26" Aluminum Alloy 6061
FRONT FORKAluminum Alloy Suspension Fork
BRAKESHydraulic Brakes
WEIGHT36 kg
LOAD160 kg / 350 lbs
// COMPLIANCE & ELECTRONICSDISPLAY · LIGHTS · WARRANTY
1 SPEC
DISPLAYLCD display
// MANUFACTURING & QUALITY CONTROL

Proprietary Build Standards & Testing Benchmarks

6061-T6 & ROBOTIC WELDING

Robotic Laser Welding & Stress Relief

Custom 6061-T6 aluminum extrusions with automated robotic laser welding for uniform fish-scale seams. T4/T6 heat-treated to relieve internal stresses, tested for 100,000+ vertical fatigue cycles under ISO 4210 / EN 15194.

SURFACE FINISHING

Automated Electrostatic Powder Coating

Multi-stage degreasing, oxide stripping, and anti-corrosion passivation. Automated powder coating line with high-temperature curing exceeds 96-hour neutral salt spray (NSS) testing to withstand humid and coastal operating environments.

ELECTRICAL & BMS

100% Dyno Bench & Safety QC

Every production unit undergoes 100% loaded dyno testing before packing: motor torque curve, hydraulic brake deceleration response, IPX6 waterproof harness sealing, and battery cell balancing verification (ΔV < 15mV).

LOGISTICS & PACKING

Container-Optimized B2B Packing (40HC)

Heavy-duty 5-layer corrugated export cartons with custom high-density molded foam inserts. Engineered to maximize 40HC container cube utilization (up to 320+ units for folders), significantly lowering per-unit landed ocean freight.

// B2B AFTER-SALES SUPPORT

Warranty & Spare Parts SLA

1%–2% FREE BUFFER

Wear & Tear Spare Parts

For full-container wholesale orders (20GP / 40HQ), ClipClop bundles 1% to 2% complementary wear parts (brake pads, inner tubes, spokes, cables) inside the shipment.

12–24 MONTH WARRANTY

Core Powertrain SLA

Battery packs, drive motors, and smart controllers carry a 12 to 24-month direct manufacturer warranty with traceable serial numbers and factory inspection logs.

AIR EXPRESS DISPATCH

Fast RMA Replacement

Verified defective electrical parts under warranty are dispatched via international air express (DHL / FedEx / SF International) to minimize dealership showroom downtime.

<24H ENGINEERING DESK

Technical RMA Support

Direct bilingual engineering triage via WhatsApp and video diagnostics. RMA verification and warranty authorization initiated within 24 business hours.

M20 OEM electric bike
// M Series · City Compact

M20

M20S OEM electric bike
// M Series · City Compact

M20S

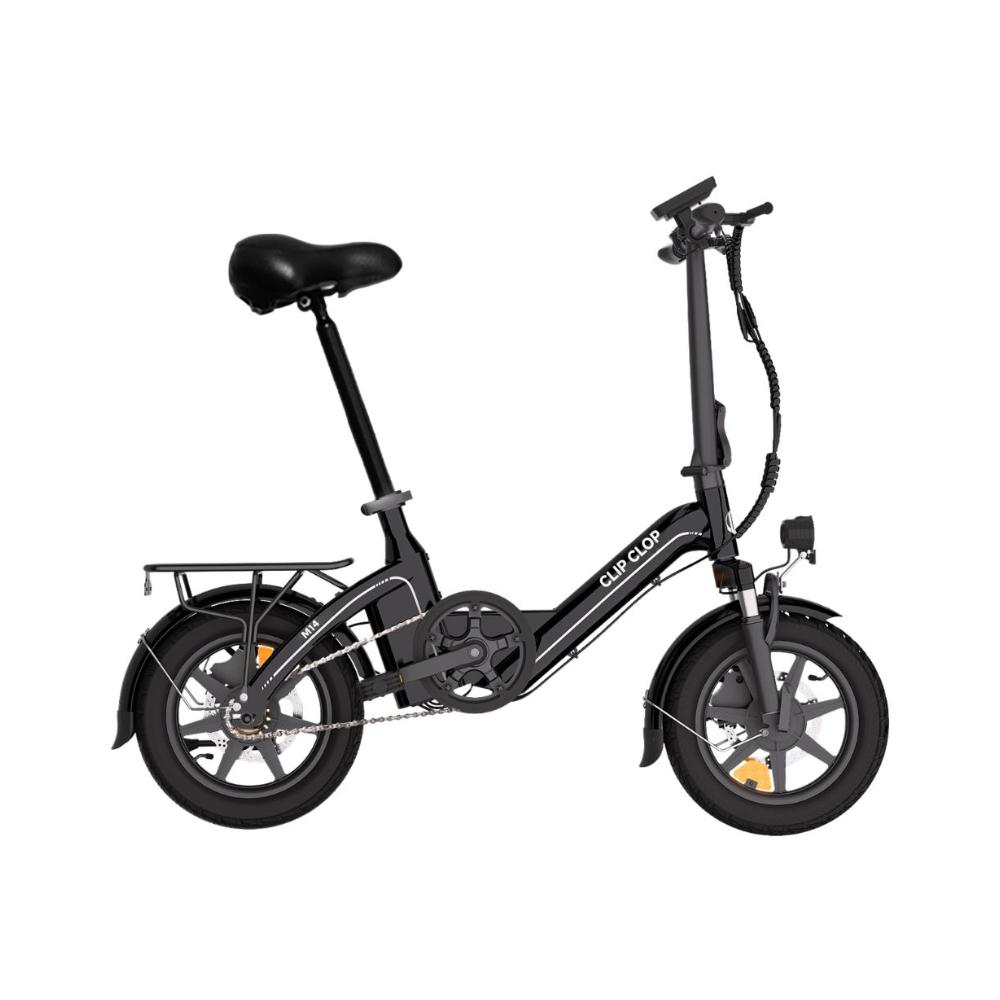

M14 OEM electric bike
